Goal: design a building to store the city’s archival materials, on a tight, sloped urban infill site.
The building is meant to serve the community, as well as the archives. Community spaces include a cafe, gallery, event space, and a reading room. Archival spaces include the archives and supporting office space.
For this project, we also designed and modeled the HVAC system.
![](https://cdn.myportfolio.com/def24897-a009-4249-a8e3-e197d19d8f49/80934c0f-53ab-4fde-a140-8139290bb3e9_rw_1920.png?h=042b7322142063c65f8deb0c0f944c98)
Site Analysis: traffic patterns and data
![](https://cdn.myportfolio.com/def24897-a009-4249-a8e3-e197d19d8f49/0dbc780e-a3d7-43a5-bf23-4c9a0f061e80_rw_1920.png?h=5965f97414ee17bc02da42cf18711ba2)
Site Analysis: public and private spaces
![](https://cdn.myportfolio.com/def24897-a009-4249-a8e3-e197d19d8f49/2217b5a4-0b0f-4883-854f-90ead6d9de06_rw_3840.png?h=8dfd328f73e6dd10f8f060ba09494e01)
Site Analysis: Revit model Photoshopped into aerial view.
![](https://cdn.myportfolio.com/def24897-a009-4249-a8e3-e197d19d8f49/d6dc6d45-7b7c-4582-bc61-93005ed567e8_rw_1920.jpg?h=b14ecc67dacee7eccd50c661de295b30)
Exterior renderings. Left: cafe entrance, on busier street. Right: outdoor space, on quieter street. TAOM stands for The Archive of Madison.
![](https://cdn.myportfolio.com/def24897-a009-4249-a8e3-e197d19d8f49/f747e0bb-27e8-4028-9476-007301d08869_rw_1920.jpg?h=e853d4439d90f7059e304e1404dd536c)
Rendering of interior event space.
![](https://cdn.myportfolio.com/def24897-a009-4249-a8e3-e197d19d8f49/eccf1df7-c62d-4ef3-a2f0-c98e202b302b_rw_1920.jpg?h=f281a5ca16eec5833c0a9a4f3610e7d5)

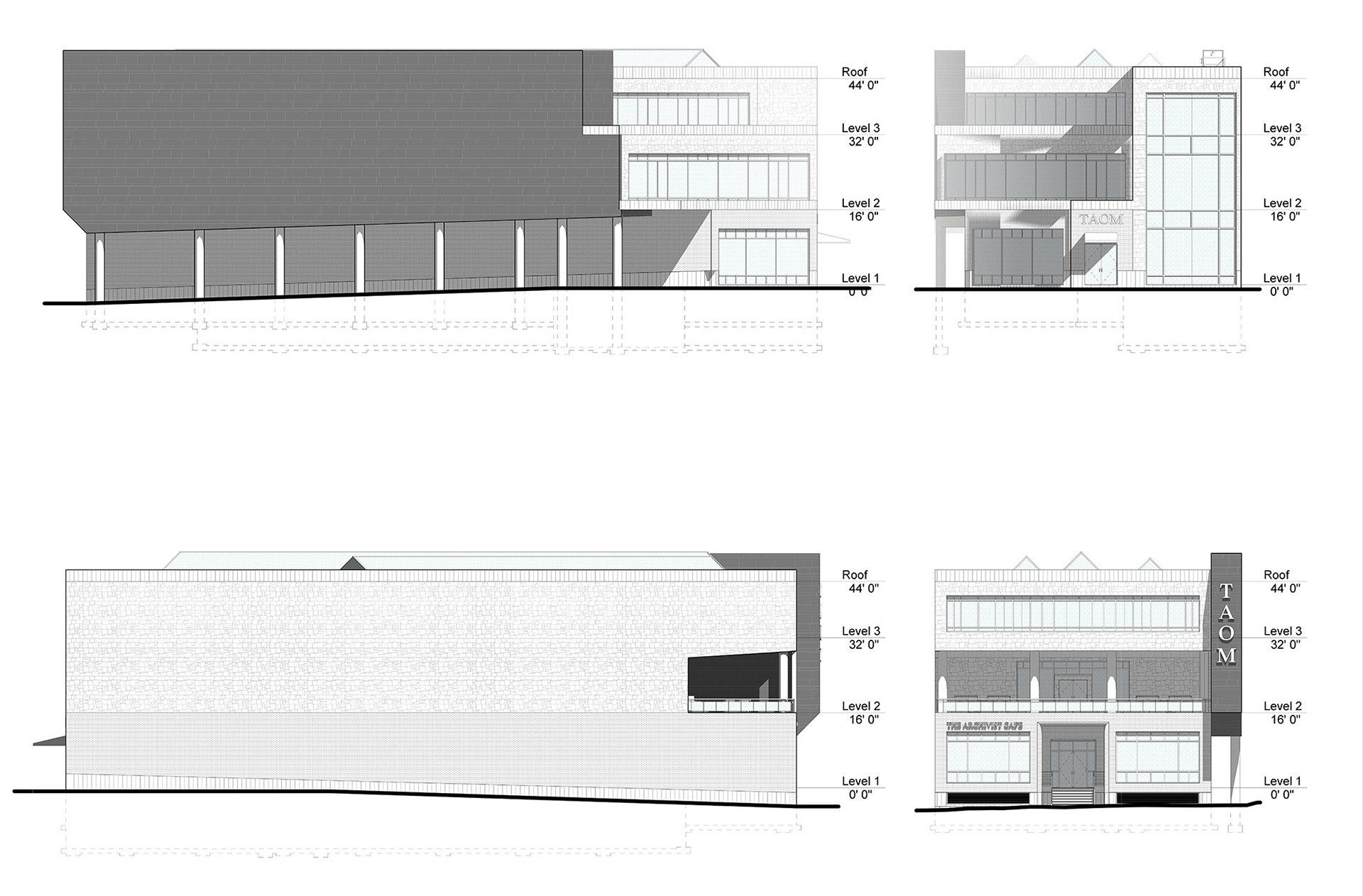

Exterior elevations
![](https://cdn.myportfolio.com/def24897-a009-4249-a8e3-e197d19d8f49/a65ed0b7-39c4-4642-ac12-db9de0266073_rw_1920.jpg?h=861ec85fa74b3e4b2d4a73dd5bd5277b)

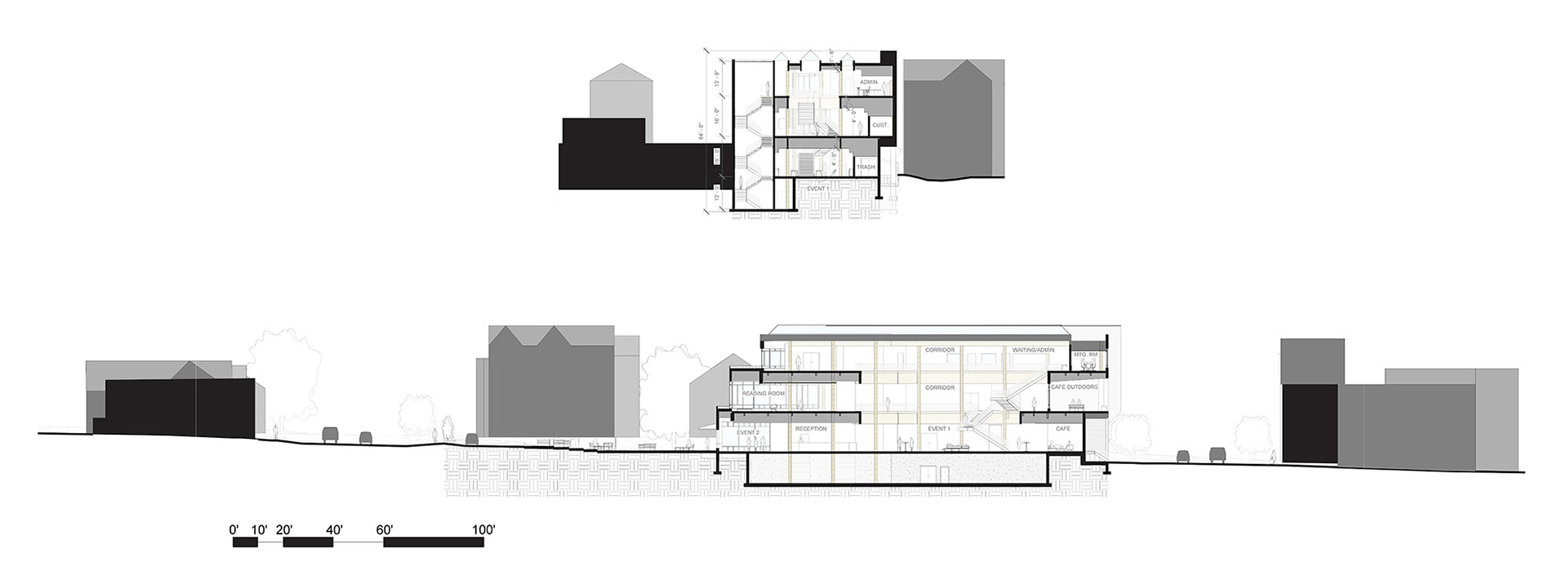

Building sections
![](https://cdn.myportfolio.com/def24897-a009-4249-a8e3-e197d19d8f49/43d5c389-0d2d-43db-861e-241f9edeadfb_rw_1920.jpg?h=19a170b87bd71990e30b7dc5585c59a9)
![](https://cdn.myportfolio.com/def24897-a009-4249-a8e3-e197d19d8f49/422fab88-5cff-4de6-bf5a-2b135717d626_rw_1920.jpg?h=2097da3e673157fd31953dc9e35e4128)

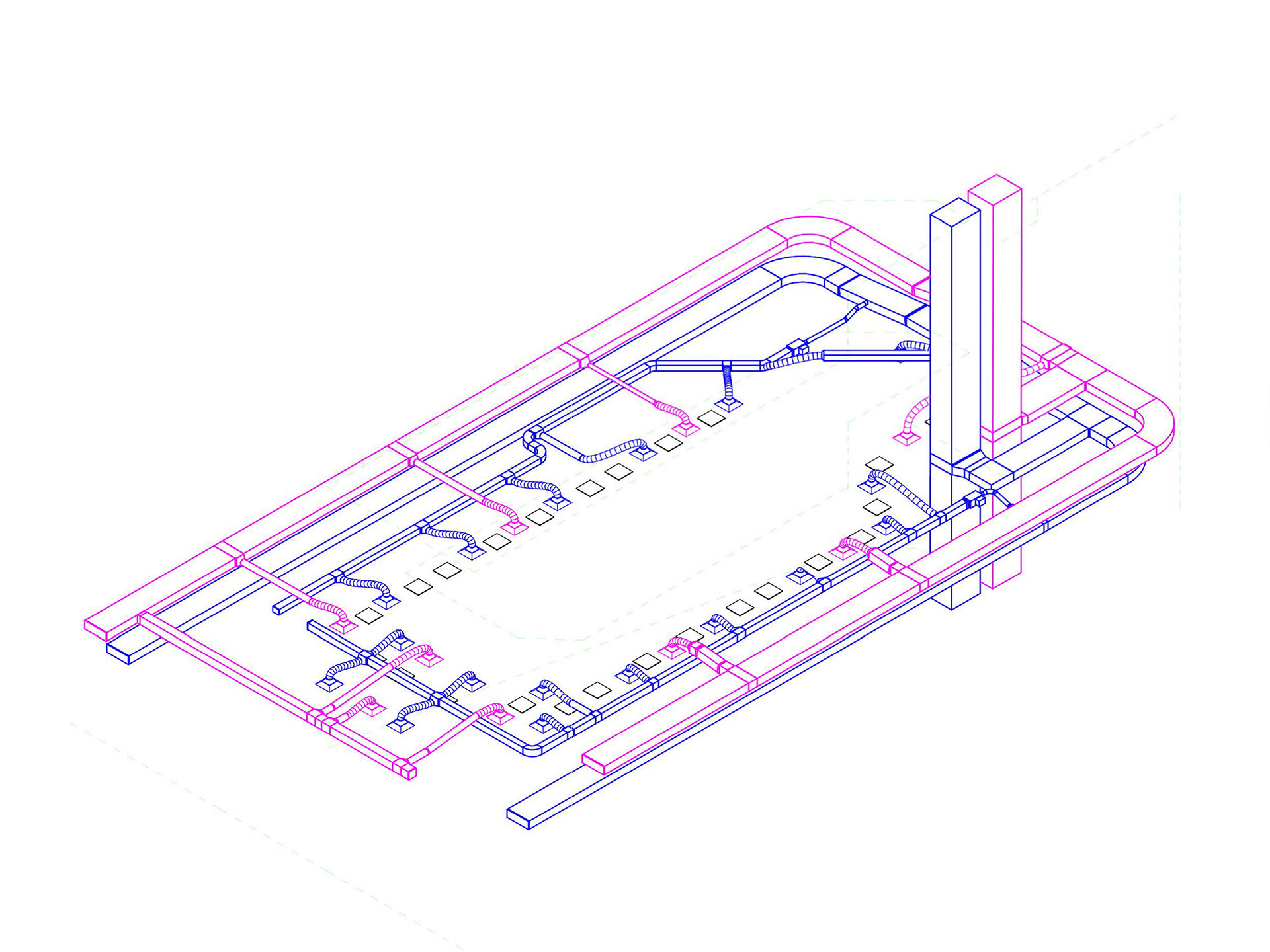

Partial HVAC model
