Goal: design a bus shelter for Observatory Hill on the University of Wisconsin-Madison campus, overlooking Lake Mendota.
Campus buildings overlook the site from above and to the sides. My personal goal was to design a shelter that is beautiful, yet does not distract from the lake view for onlookers.
The large boulder sits over a drain. In the winter, meltwater runs off the roof and onto the boulder, where some of it refreezes. This creates a constantly changing ice sculpture, celebrating the beauty of winter.
![](https://cdn.myportfolio.com/def24897-a009-4249-a8e3-e197d19d8f49/eb43167a-5062-4738-9da0-ebd1a2a72151_rw_3840.png?h=63b56b6273a206f7fd6699e4f2b7a75c)
Lumion rendering of SketchUp model
![](https://cdn.myportfolio.com/def24897-a009-4249-a8e3-e197d19d8f49/cf731cfd-7acd-443f-8acb-c6c1706e3570_rw_3840.jpg?h=c624966f51a98f067284358a9880bd9c)

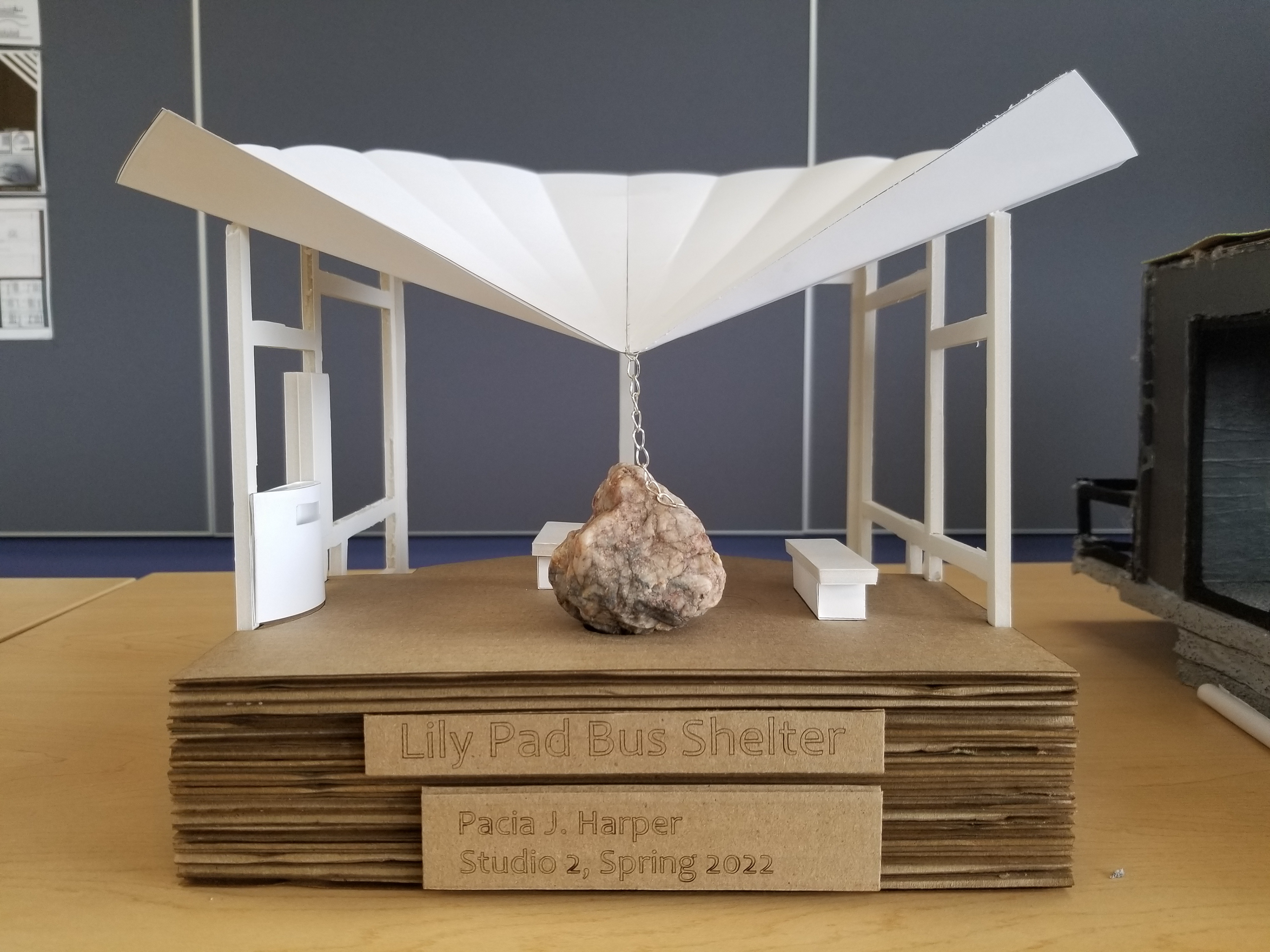

Physical model
![](https://cdn.myportfolio.com/def24897-a009-4249-a8e3-e197d19d8f49/5fac8b70-8725-4bf7-bbcd-7e85b7174436_rw_1920.jpg?h=99ed3da5a0c11d9fa5ece3cd996c44f9)
![](https://cdn.myportfolio.com/def24897-a009-4249-a8e3-e197d19d8f49/6e931107-a704-47ee-aeba-3e4a220c2b29_rw_1920.jpg?h=c5e186ce07933c2c8fa5da03cef34f73)
![](https://cdn.myportfolio.com/def24897-a009-4249-a8e3-e197d19d8f49/38f69c2d-7b88-4d0a-aea9-3e10c60e037d_rw_1920.jpg?h=dad0fe808a2793dc7ca0ff6a98e3cfa7)
![](https://cdn.myportfolio.com/def24897-a009-4249-a8e3-e197d19d8f49/e978cdfe-62b9-401a-9161-5b91ad530d12_rw_1920.jpg?h=9a6f37ee7b0c3e50fc3309e14d85082c)
